Vaillant uniSTOR plus | VIH R 120/6 B
Selling price
6.389,00 zł
Normal price
7.716,00 zł
Basic price
Description
Description

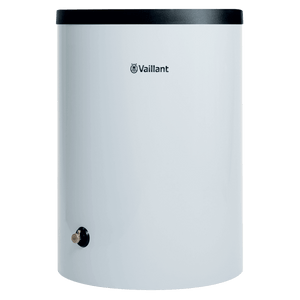

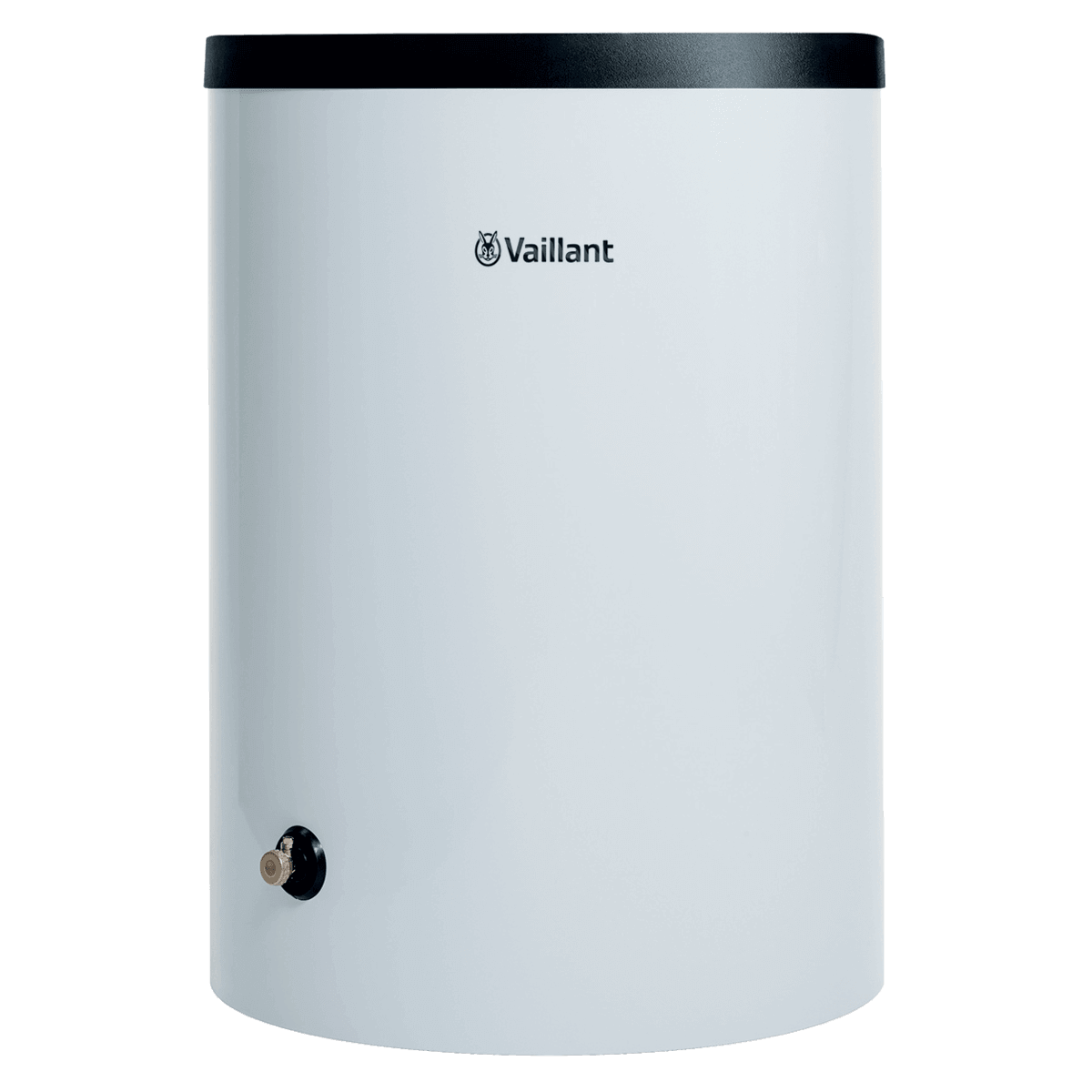

Vaillant uniSTOR plus | VIH R 120/6 B
Every Vaillant uniSTOR VIH R hot water storage tank offers you both economical operation with low energy consumption and the highest level of hot water comfort.
The coil storage tanks, which are technically tailored to Vaillant heating appliances, are available in two product lines and three different sizes: with a capacity of 120, 150 and 200 liters.
The product line Vaillant uniSTOR plus impresses with high-quality standard thermal insulation at a more affordable price; the uniSTOR VIH RH product line offers even greater efficiency, as the vacuum insulation jacket significantly reduces standby energy losses, thus reducing energy consumption and energy costs.
Product features
- Enamelled hot water storage tank with thermal insulation
- Internal pipe heat exchanger
- Magnesium sacrificial anode
- Gravity brake
- Circulation connection
- Drain valve
- Drinking water side (storage tank and heat exchanger) with high-quality enameling and magnesium sacrificial anode
Special features
- Hot water storage tank, indirectly heated
- All connections are routed upwards.
- Optimally matching piping kits available
- High-quality PU foam thermal insulation
Technical data: Vaillant uniSTOR plus | VIH R 120/6 B
| Total storage capacity | l | 117 |
|---|---|---|
| Hot water output | l/10min | 163 |
| Continuous hot water output | l/h | 527 (21.7 kW) |
| Standby heat loss storage | kWh/24h | 1.1 |
| Contents on the heating side | l | 4.8 |
| Maximum operating pressure on the hot water side | bear | 10 |
| Maximum operating pressure on the heating side | bear | 10 |
| Hot water temperature (max) | °C | 85 |
| Heating temperature (Max) | °C | 110 |
| Weight ready for operation | kg | 185 |
| Product dimensions (height/width/depth) | mm | 853/590/590 |
| Product weight | kg | 68 |
| Heating connection (flow and return) | R 1 | |
| Connection Circulation | R 3/4 | |
| Anode connection | G 1/2 | |
| Cold water and hot water connections | R 3/4 |
Scope of delivery
- 1 uniSTOR VIH R
- 1 gravity brake for heating circuit
- 1 cap for circulation connection
- 1 Operating and Installation Instructions
