Öko-Floor surface heating system complete set for old building renovation
Eco - Floor - Surface heating system - Complete set 20.0m²
Product description
Discover the innovative Eco-Floor surface heating system. This modern, complete set features a super-flat underfloor heating system with a height of just 18 mm, making it ideal for renovation projects. It supports both the reinforcement and replacement of existing wooden floorboards without causing significant floor buildup.
The heating system impresses with its versatility and can be used not only as underfloor heating but also as wall and ceiling heating. The system offers flexible installation options, especially in rooms with sloping ceilings.
Areas of application
The MDF underfloor heating system is perfectly suited for efficient and discreet heat distribution in various construction projects. Thanks to its low installation height, it's ideal for retrofitting in older buildings, where conventional heating systems often result in unwanted loss of space.
Its versatility as a wall or ceiling heater makes it an attractive solution for a wide range of structural requirements and individual design wishes.
Technical data and material quality
The heating system is based on a medium-density fiberboard (MDF) measuring 1200 mm x 600 mm x 18 mm, featuring a special milling pattern. This pattern allows for the precise insertion of a 12 mm thick plastic pipe, thus optimally implementing the heating circuit.
With a tensile strength of 0.75 N/mm², a flexural strength of 30 N/mm², and a thermal conductivity of 0.14 W/mK, the material is highly dense, moisture-resistant, and completely formaldehyde-free. Its thermal output is between 60 and 80 W/m², ensuring even and comfortable heat distribution.
Assembly instructions
Installation takes place in several steps: First, the base plates are laid out seamlessly according to the milling pattern. A proper wall clearance of 5 to 10 mm must be taken into account due to material expansion.
The panels are then secured with standard wood screws, and the heating pipe, with a maximum length of 80 m per heating circuit, is inserted into the milled pattern. The heating circuit is then connected to ensure reliable operation of the underfloor heating.

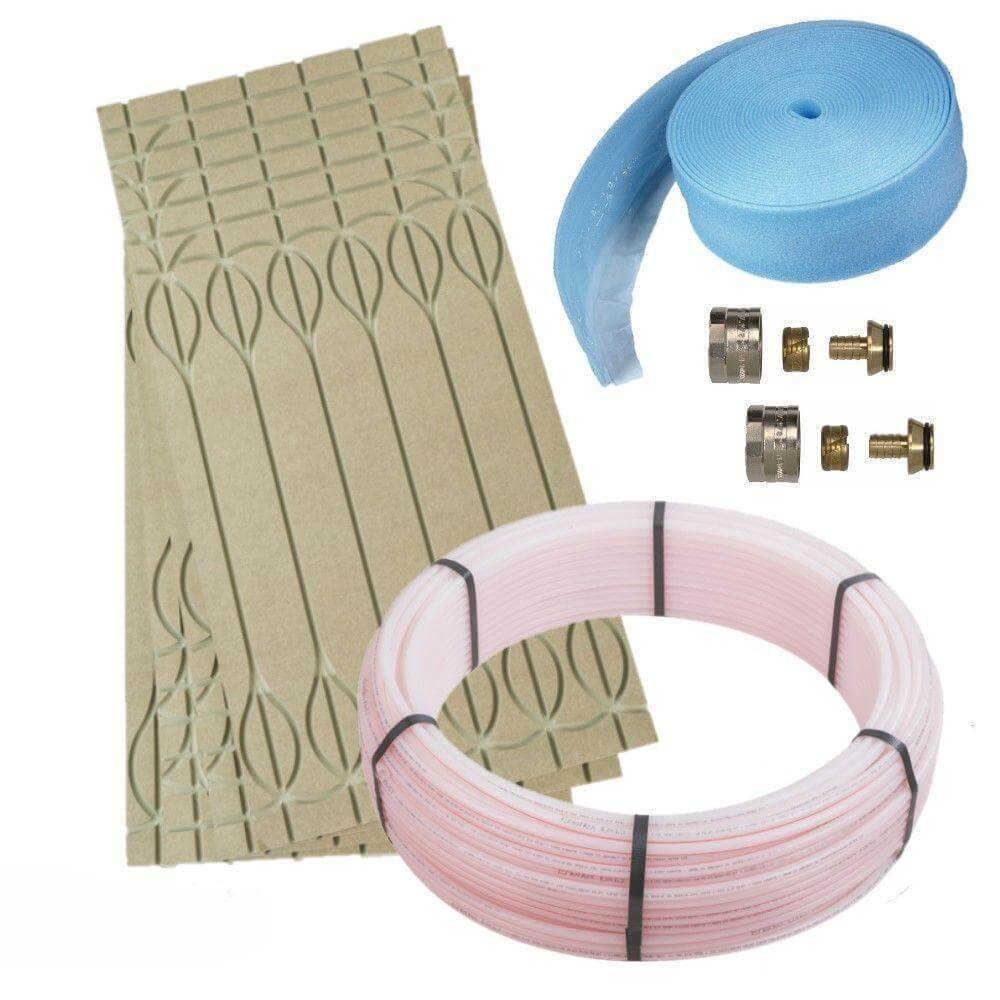

Scope of delivery
- 28 MDF carrier boards; 1200 x 600 x 18 mm
- 170 m FB heating pipe, PE-RT 12 x 1.3 mm
- 25 m edge insulation strips 100 x 8 mm;
- 4 pieces of compression fittings 12 x 2 mm
- 1 x assembly instructions
Material recommendation: (depending on surface covering, not included in delivery):
Leveling compound (Maxit HAM50 renovation leveling fast)
Ceramic floor coverings -> fully filled with levelling compound and decoupling mat
Download
*Technical changes reserved | Images may vary
