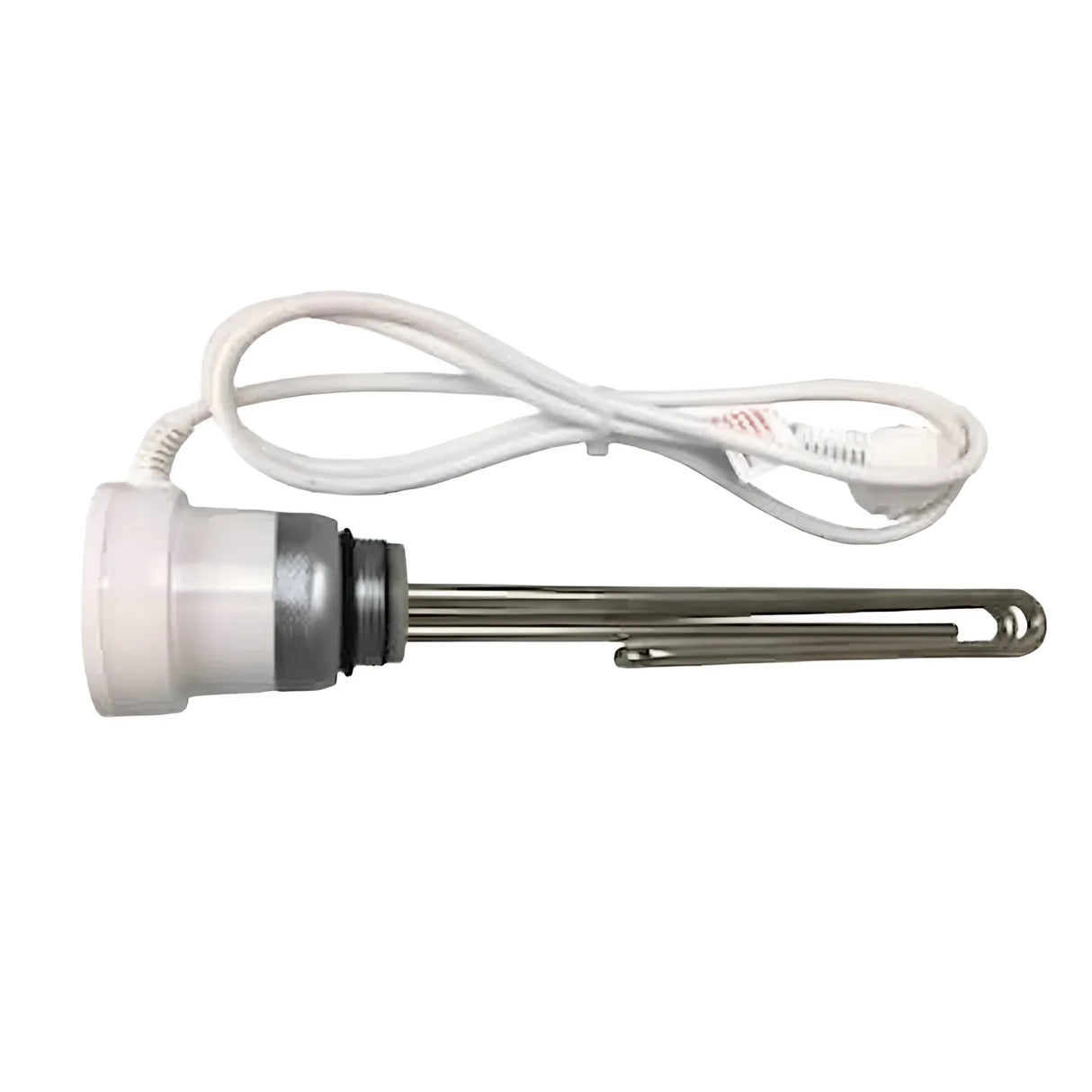

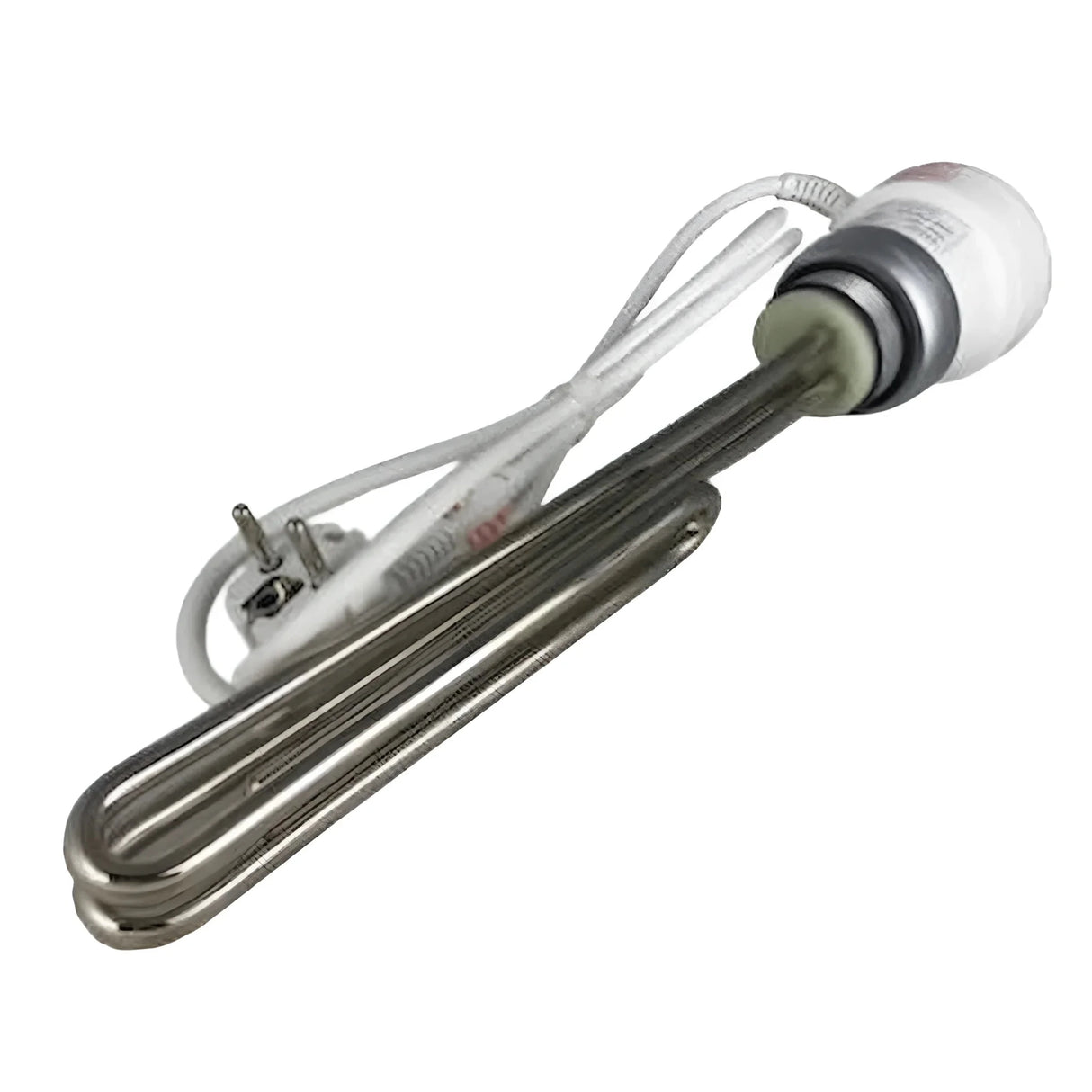

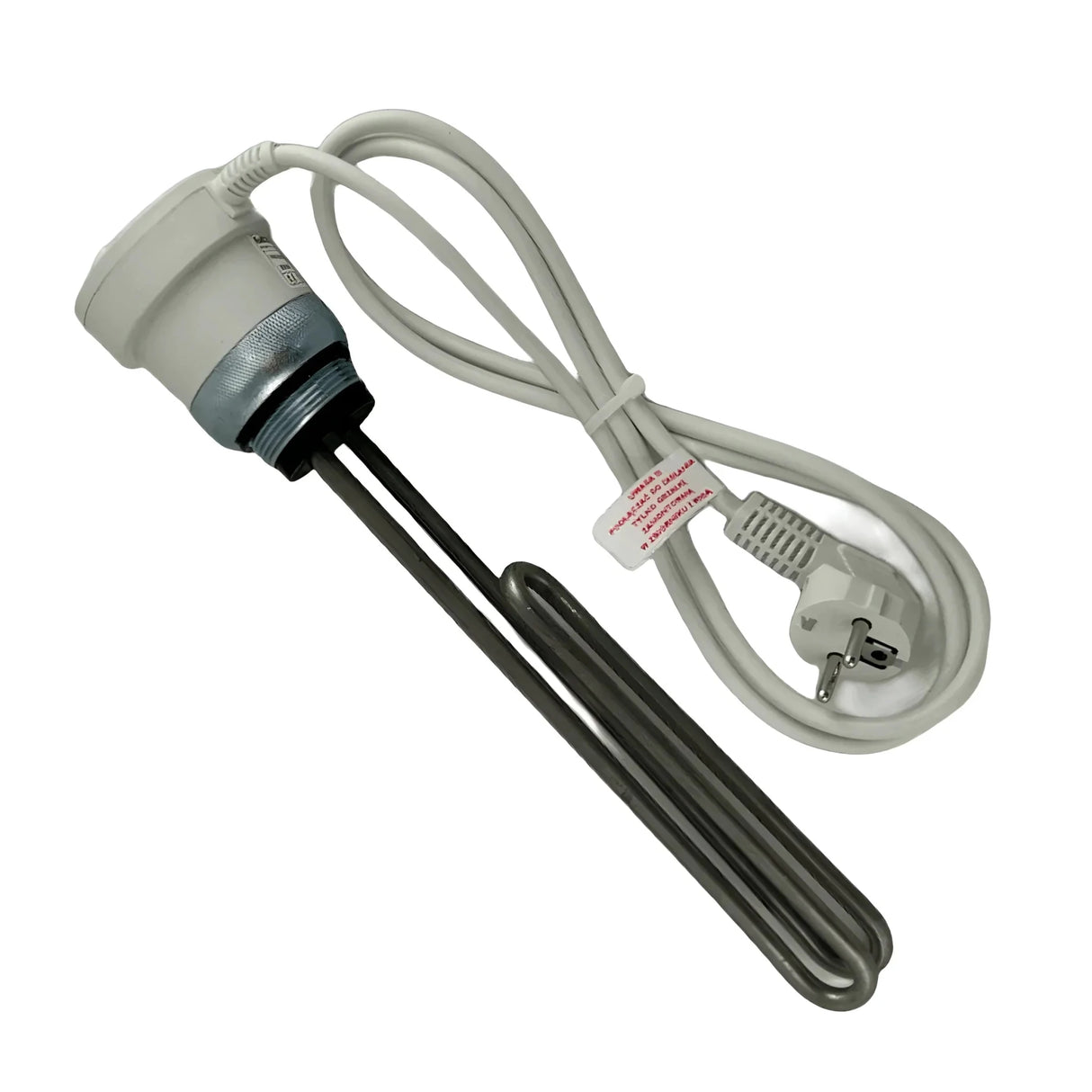

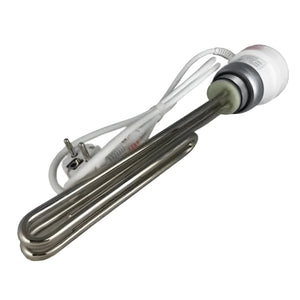

Heating element heating cartridge 1.5 kW - 1 ½“ with AG

High-performance heating element/cartridge heating cartridge 1.5 kW for reliable heat

The Elektromet heating cartridge 1.5 kW 11/2" The 230V heating element is the ideal solution for efficient heating in domestic hot water and water storage tanks. Its high-quality stainless steel construction and insulating separation ensure reliable heat output and a long service life. Whether for private households or commercial applications, this heating element offers not only outstanding performance but also user-friendly operation.

High-quality materials and robust construction

This heating cartridge is made of stainless steel, making it resistant to corrosion and ensuring a long service life. The housing is made of robust white plastic, giving the heating cartridge a functional yet visually appealing design. The heating coil, made of Alloy 825, provides additional resistance to high temperatures and stresses.

Flexible temperature control for individual comfort

The integrated thermostat housing allows for precise and easily adjustable temperature control in the range of 5 to 75 °C. Additionally, a safety temperature limiter at 93 °C provides reliable protection against overheating. A switch-on hysteresis of 7-10 °C ensures that the water temperature always remains within an optimal range, making the heating process energy-efficient.

Easy installation and compatibility

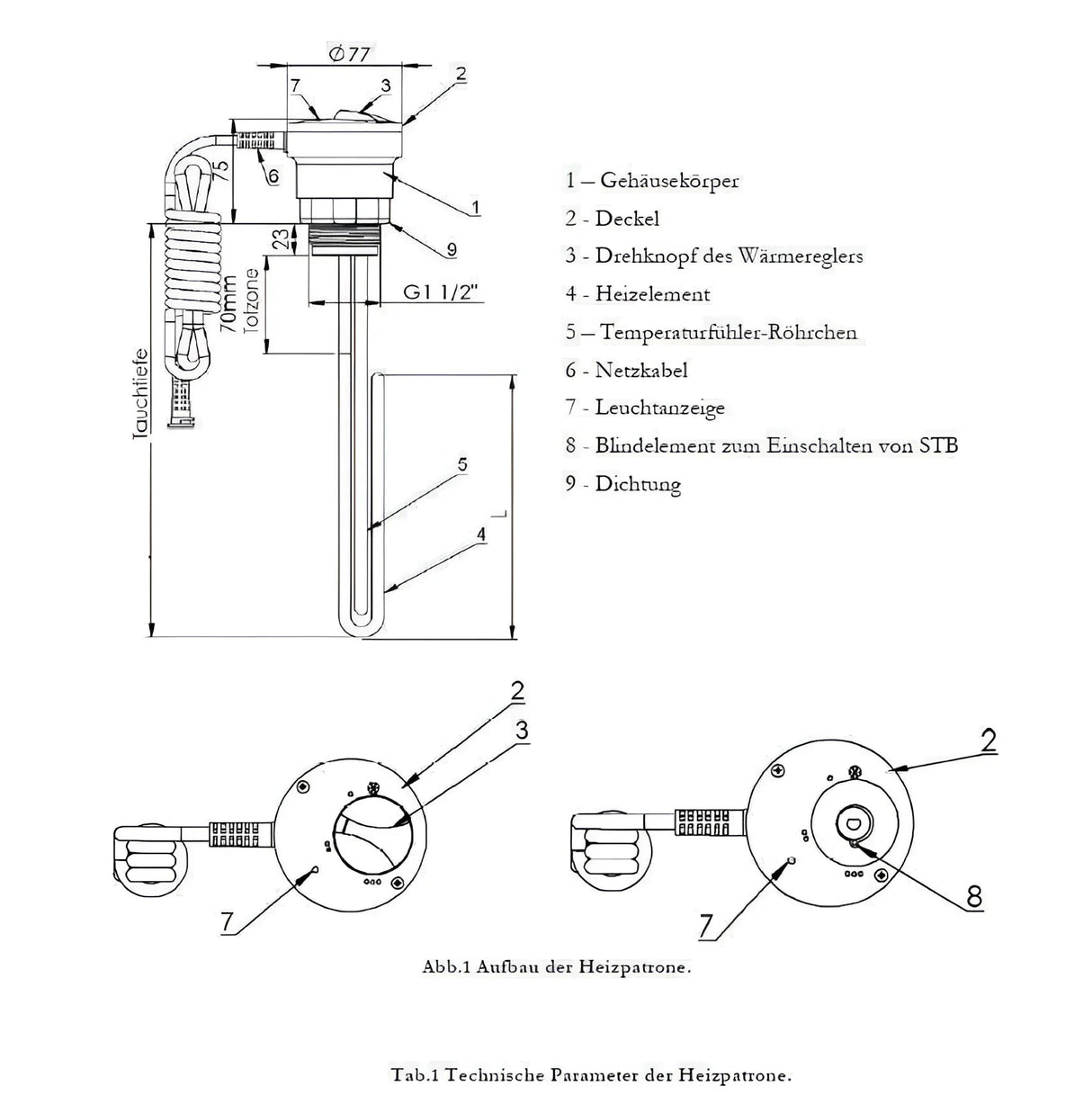

The heating element has a 1 1/2" The heating element has an external thread (AG) and fits standard domestic hot water and drinking water storage tanks. Thanks to its compact installation length of 300 mm and an unheated length of 70 mm, the heating element can be integrated quickly and easily. The included 1.5-meter connection cable ensures a simple and direct power supply.

Reliable protection for maximum safety

The Elektromet heating element cartridge is protected against splashing water according to IPX4 and thus meets the highest safety standards. Additionally, the insulating separation ensures safe use in domestic hot water and drinking water storage tanks. With a maximum operating pressure of 10 bar, the heating element is also ideally suited for demanding applications.

Versatile range of applications

This heating cartridge is ideal for both private and commercial applications. Whether in homes, heating systems, or industry – the Elektromet 1.5 kW 11/ heating cartridge is suitable for all applications.2" It impresses with its efficiency and reliable heat supply. It is the perfect choice to optimize the comfort and functionality of your heating system.

Scope of delivery

The scope of delivery includes everything you need for quick commissioning: The Elektromet heating cartridge 1.5 kW 11/2" It comes with a high-quality seal and detailed operating instructions. This ensures easy installation and smooth use.

Conclusion: Efficient heat of the highest quality

With the Elektromet heating cartridge 1.5 kW 11/2" With the 230V option, you're choosing an efficient, durable, and versatile solution for your hot water needs. High-quality materials, sophisticated safety features, and precise temperature control make this heating element a top-notch choice. Opt for quality and convenience – with the Elektromet heating element.

Technical data

• Heating output: 1.5 kW
• Temperature range: 5-75°C
• Switch-on hysteresis: 7-10°C
• Installation length: 300 mm
• Unheated length: 70 mm
• Safety temperature limiter: 93°C
• Connection: 1 1/2" male thread
• Max.Operating pressure: 10 bar
• Protection rating: IPX4
• Heating coil material: Alloy 825
• Housing material: plastic, white
• Power supply: 230V/16A, single-phase
• Connection cable: 1.5 meters with Schuko plug
