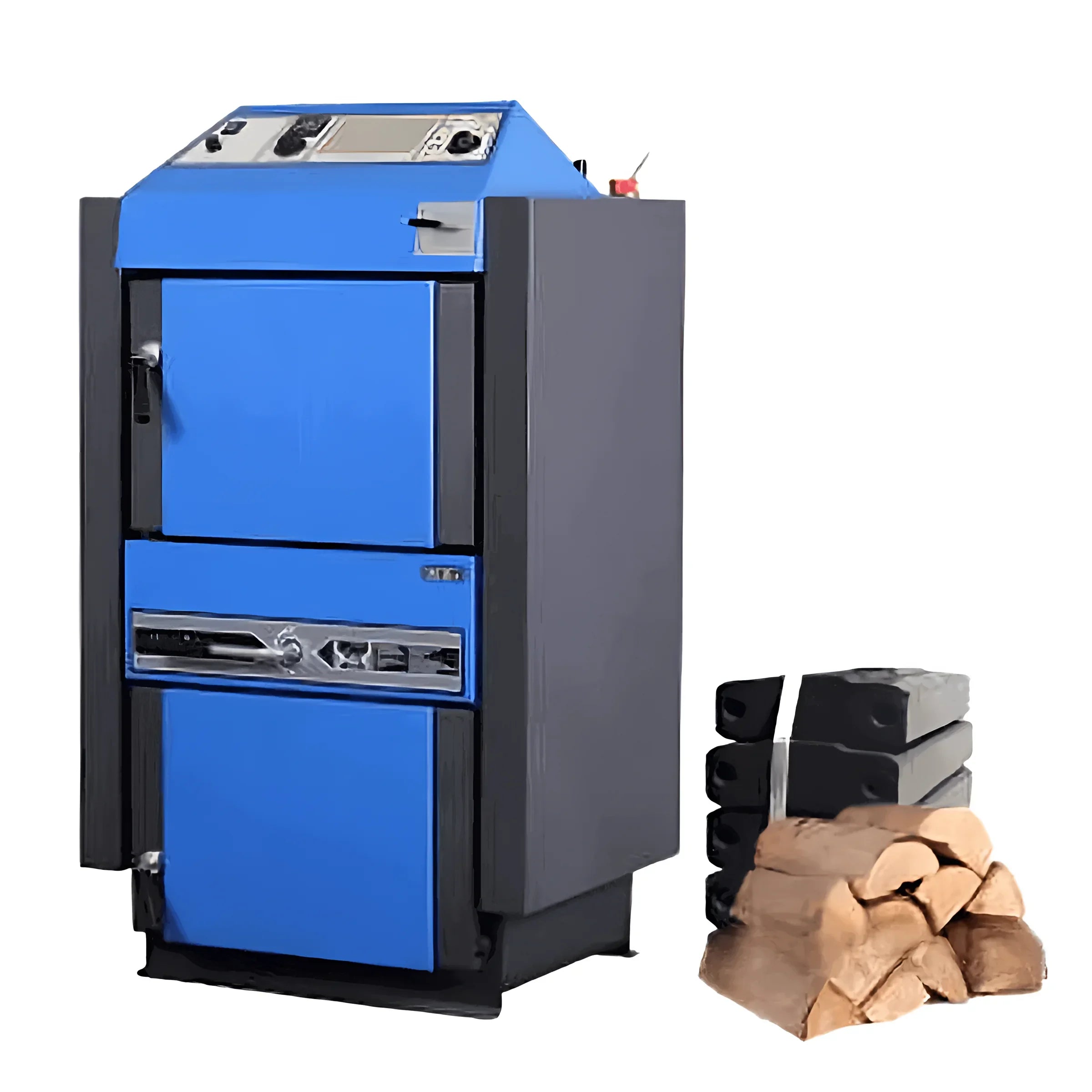

ATMOS KC45S coal carburetor for wood and coal
Coal boiler Atmos KC45S
The Atmos KC45S is a coal gasification boiler that can also use logs as a substitute fuel.
A gasification boiler for wood and coal. It is specifically designed for heating family homes, weekend cottages, country houses, workshops, and similar properties. The boiler body is made of 6 and 8 mm thick sheet steel and offers significantly better heat transfer than cast iron.
A coal gasification boiler as a good replacement boiler for GK21 and other old cast iron boilers
The Atmos KC series is the perfect replacement for all outdated cast iron boilers, such as the GK21, GK31, or K30 coal-fired boilers. In addition to coal, the KC can also burn wood very effectively, achieving a maximum efficiency of 86%. It also meets all the necessary requirements of the Federal Immission Control Ordinance (BImSchV) and is therefore approved for use in Germany.
Advantages: Coal boiler Atmos KC45S
- Special gasification boiler suitable for many fuels
- Ceramic combustion chamber with rotating cast iron grate
- Secondary air preheating ensures optimal combustion during the heating phase and rapid performance
- Cast iron grate sits in a ceramic bowl – new design specifically for the gasification of lignite briquettes and hard coal
- Easy cleaning of the combustion chamber and the exhaust duct with tube heat exchanger
- High efficiency up to 86%
- Modern design and attractive price
Technical data
- Energy efficiency class C
- Boiler class 3
- Nominal heat output 45 kW
- Efficiency 85.2%
- Tensile requirement 25 Pa
- CO content 171 mg/m³
- Dust emission 17 mg/m³
- Prescribed fuel: coal, logs
- Maximum firewood length 430 mm
- Exhaust gas temperature 254 °C
- Exhaust gas mass flow 0.024 kg/s
- Height 1435 mm
- Width 675 mm
- Depth 858 mm
- Flue pipe connection 150/152 mm
- Weight 399.0 kg
Scope of delivery:
- ATMOS KC - Gasification boiler
- Honeywell draft regulator
- Cleaning accessories
- Ash container
- Honeywell draft regulator
- Filling tap
- Assembly and operating instructions
