Regulus Feuerzugller for solid fuel boilers
Regulus fire regulator

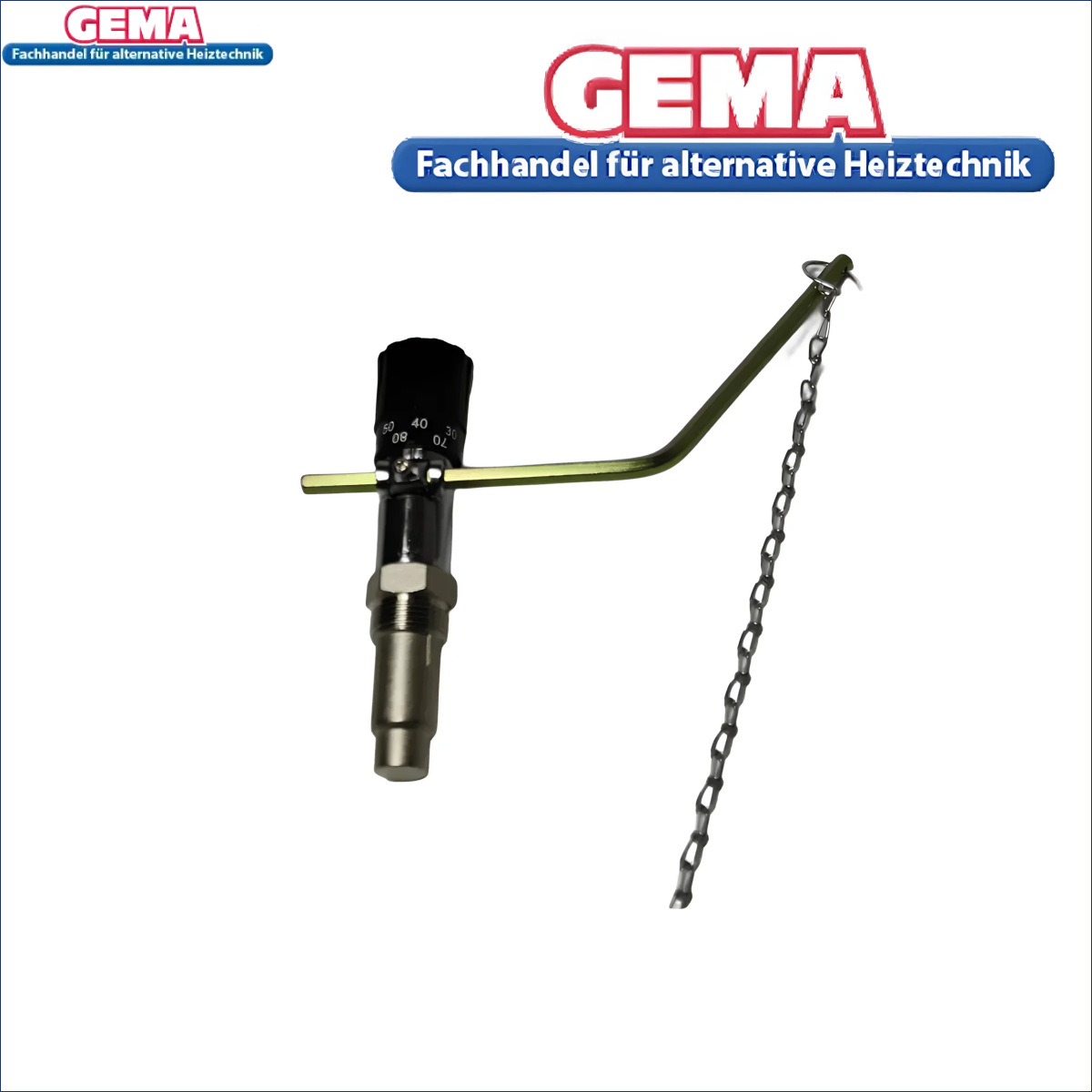

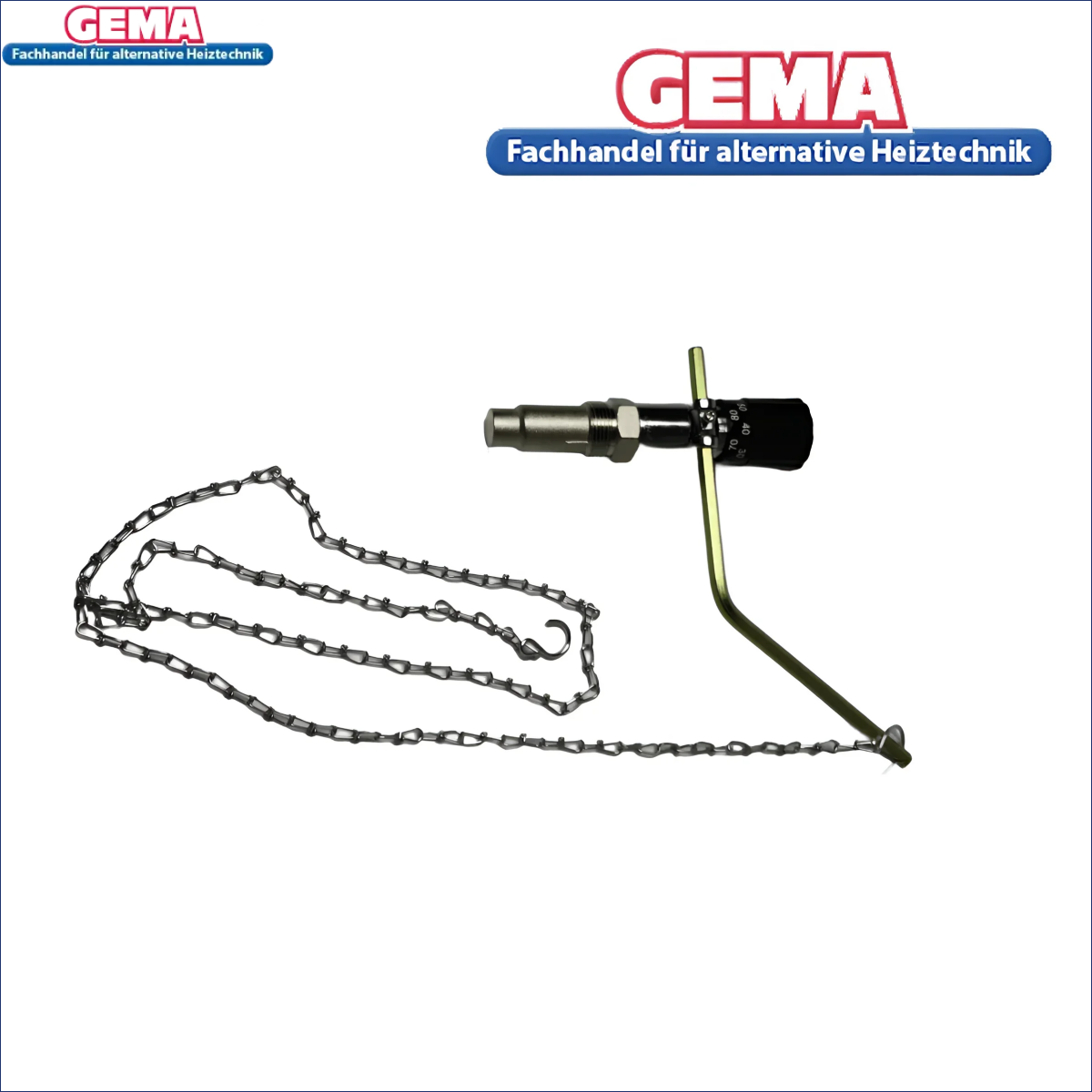

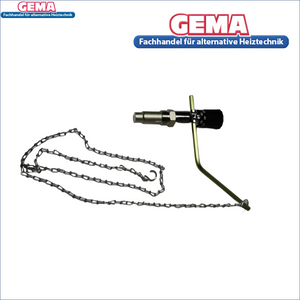

Draft regulator for solid fuel boilers regulates the air supply for combustion.
The temperature in the heat generator is measured by an integrated thermostat.
The thermostat is connected to the supply air damper via a lever rod and a chain.
Depending on the boiler flow temperature, the air supply is regulated by opening or closing the supply air flap.
For temperature-dependent adjustment of the supply air flap on solid fuel and alternating fuel boilers.
Technical data:
- Control range: 30-90°C
- Max. water temperature: 120°C
- Max. ambient temperature: 60°C
- Chain load: 100-1000g
- Working position: vertical or horizontal
*Technical changes reserved | Images may vary
