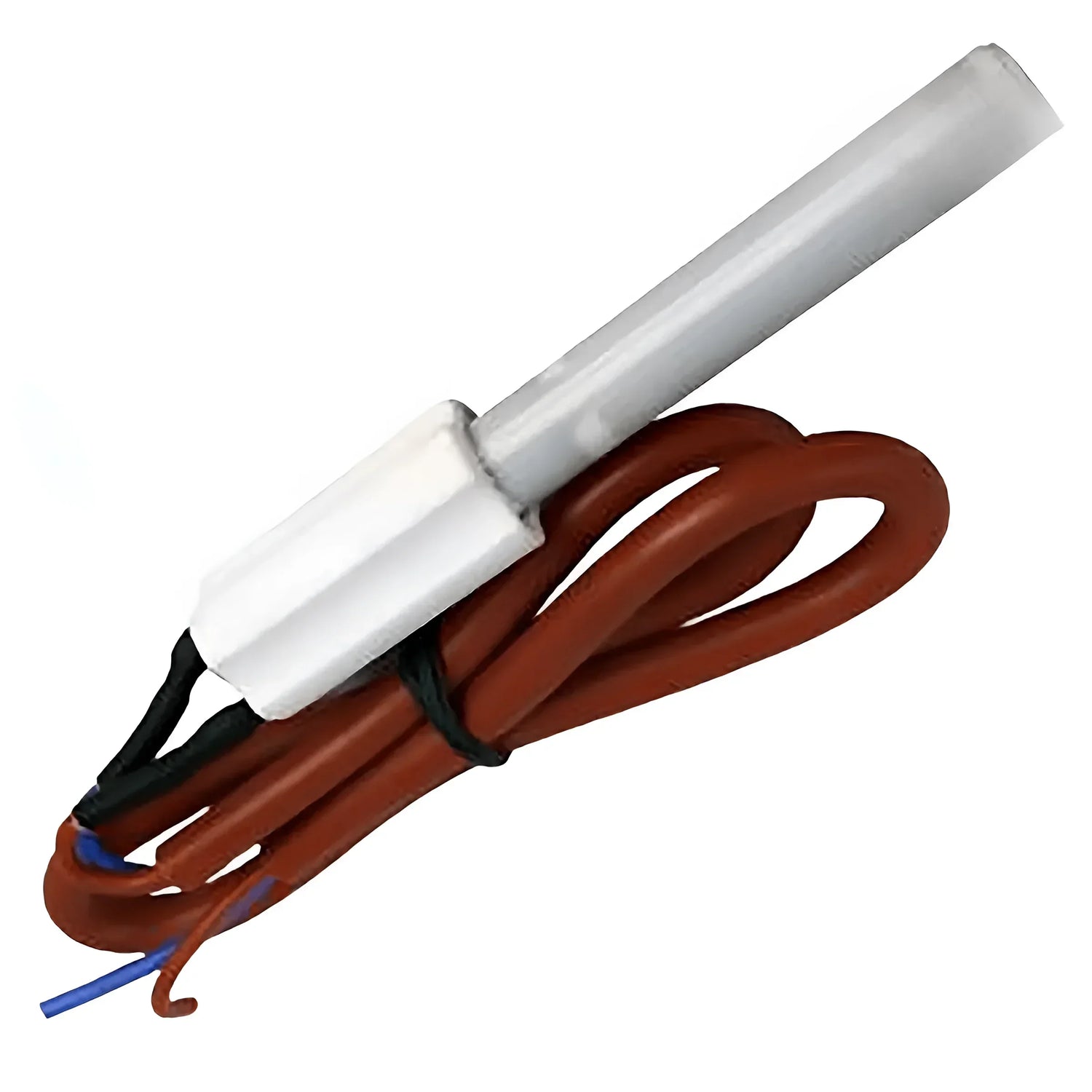

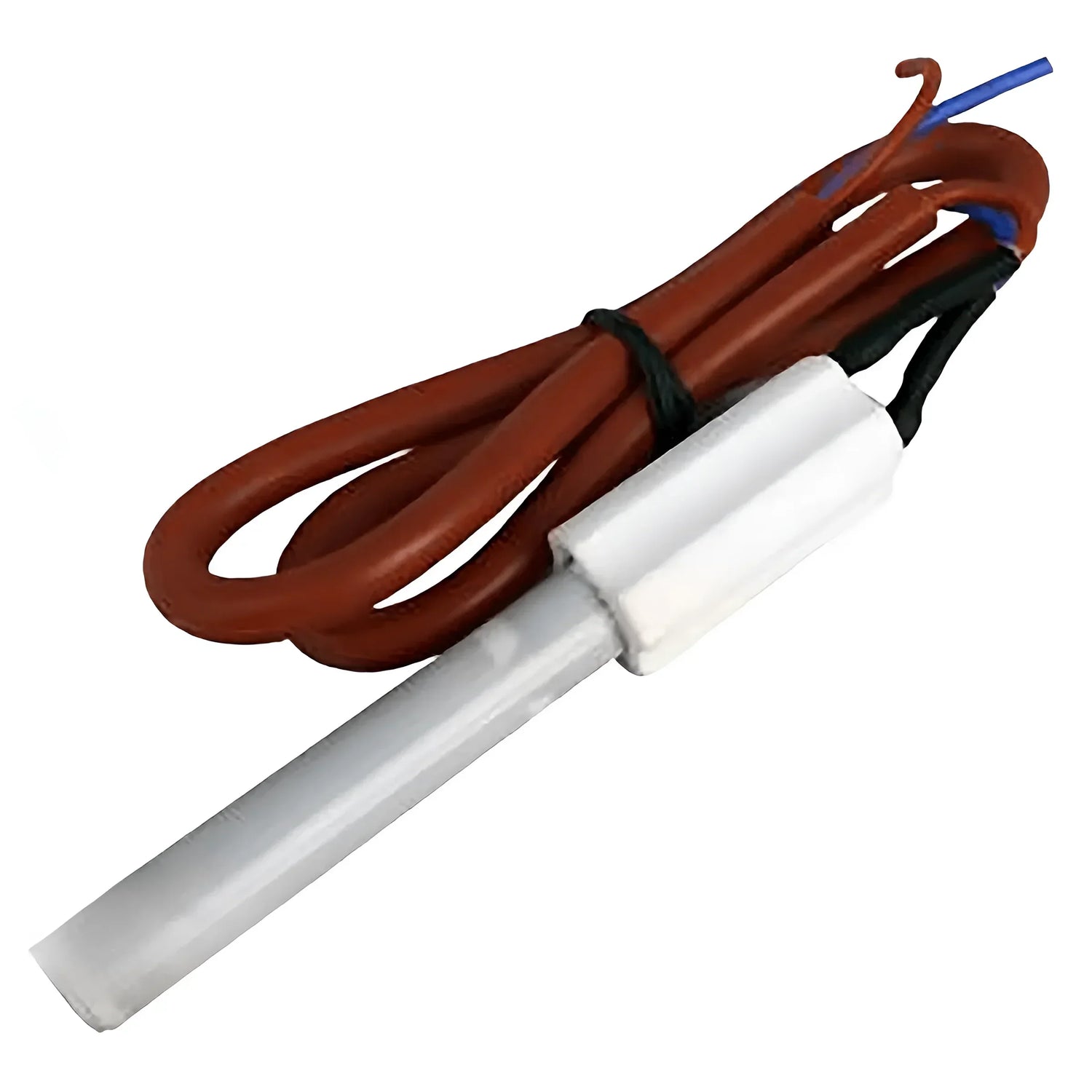

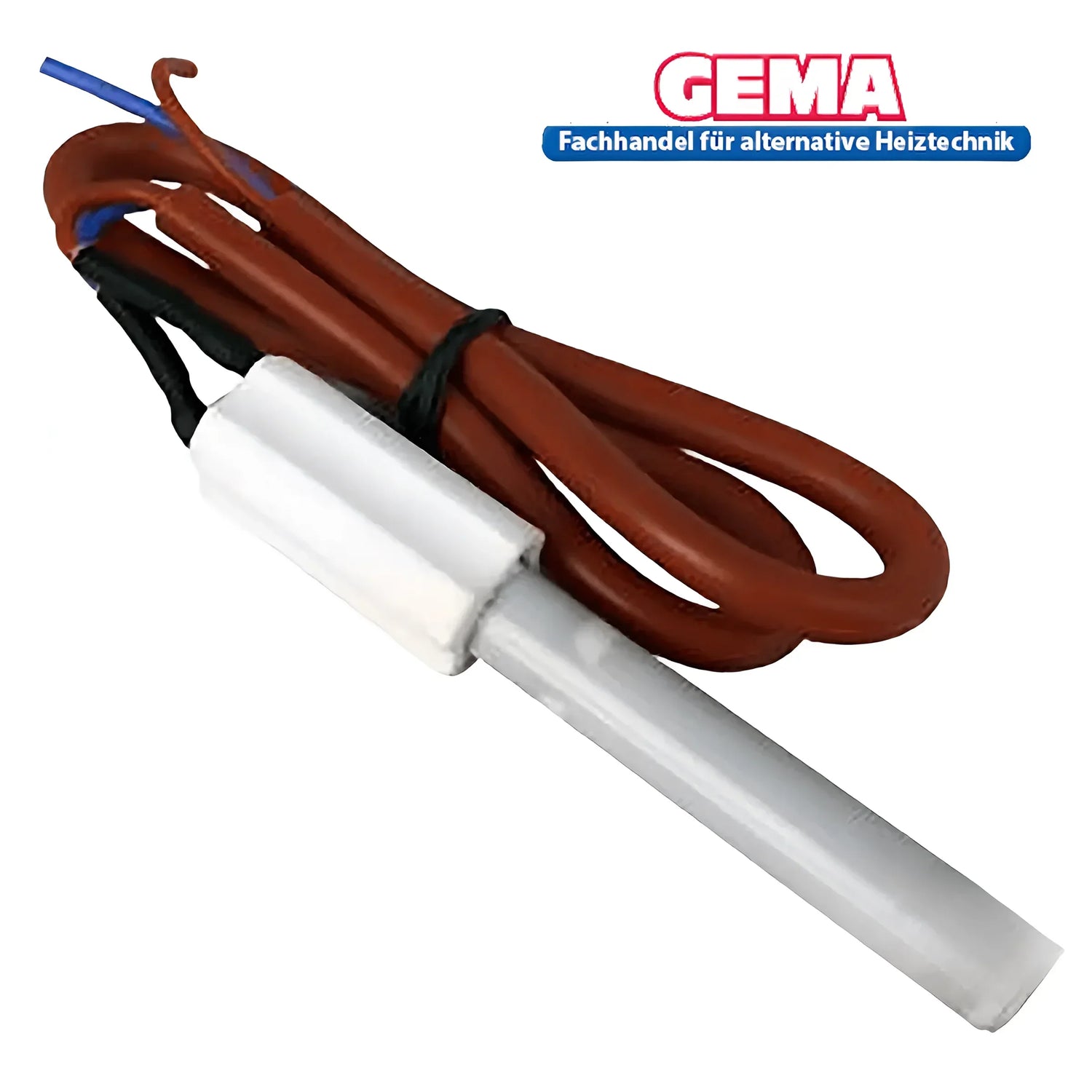

HTH glow plugs

Ignition element for pellet boiler

The HTH glow igniter for pellet heating systems and pellet stoves offers a very high reliabilityThe HTH glow igniter is the first choice when it comes to installing a high-quality and efficient pellet igniter for your heating system.

The igniter consists of Ceramics and is used by manufacturers such as Wamsler, Pellasx, Defro, and many others. By using the HTH glow plug, you also protect the environment, as the ignition process is accelerated, thus producing fewer harmful emissions during the ignition phase.

Original glow plugr for Ecovarm pellet burners E+, ES+ and E1.

Ideal for pellet boilers and pellet stoves.

For PellasX, Ecofire E1, Ecofire E+Scotte NBE Pellex Pel-lets Ariterm BMHTMCZ, Edilkamin, Red, HKS Lazar, Rika, Wamsler, LA Nordica, ITC, Extraflame, Olsberg, Oranier Pellasx, Elektromet. DEFRO Duo and more...

Ceramic igniter glow igniter HTH Standard Made in Germany.

HTH Glow Plug Advantages

• Lower power consumption due to lower power consumption
• Lower power consumption due to shorter ignition time
• less harmful exhaust gases during the ignition phase
• approx. five times longer lifespan

suitable for:

PellasX, Ecofire E1, Ecofire E+Scotte NBE Pellex Pel-lets Ariterm BMHTMCZ, Edilkamin, Red, HKS Lazar, Rika, Wamsler, LA Nordica, ITC, Extraflame, Olsberg, Oranier Pellasx, Elektromet. DEFRO Duo, Pellet DEFRO Duo Ekopell, DEFRO Duo Compact Pellet,

Technical data

• Power: 170W - 200W
• Maximum element temperature: 1000 °C (continuous and alternating operation)
• Lebensbauer approx. 15,000 heating cycles with ignition times up to max. 90 seconds
• maximum element temperature, briefly up to 1200 °C
• Total length (without cable): 95 mm
• Rear diameter: 17.5mm
• Front diameter: 11mm
• Cable length approx.: 35cm
