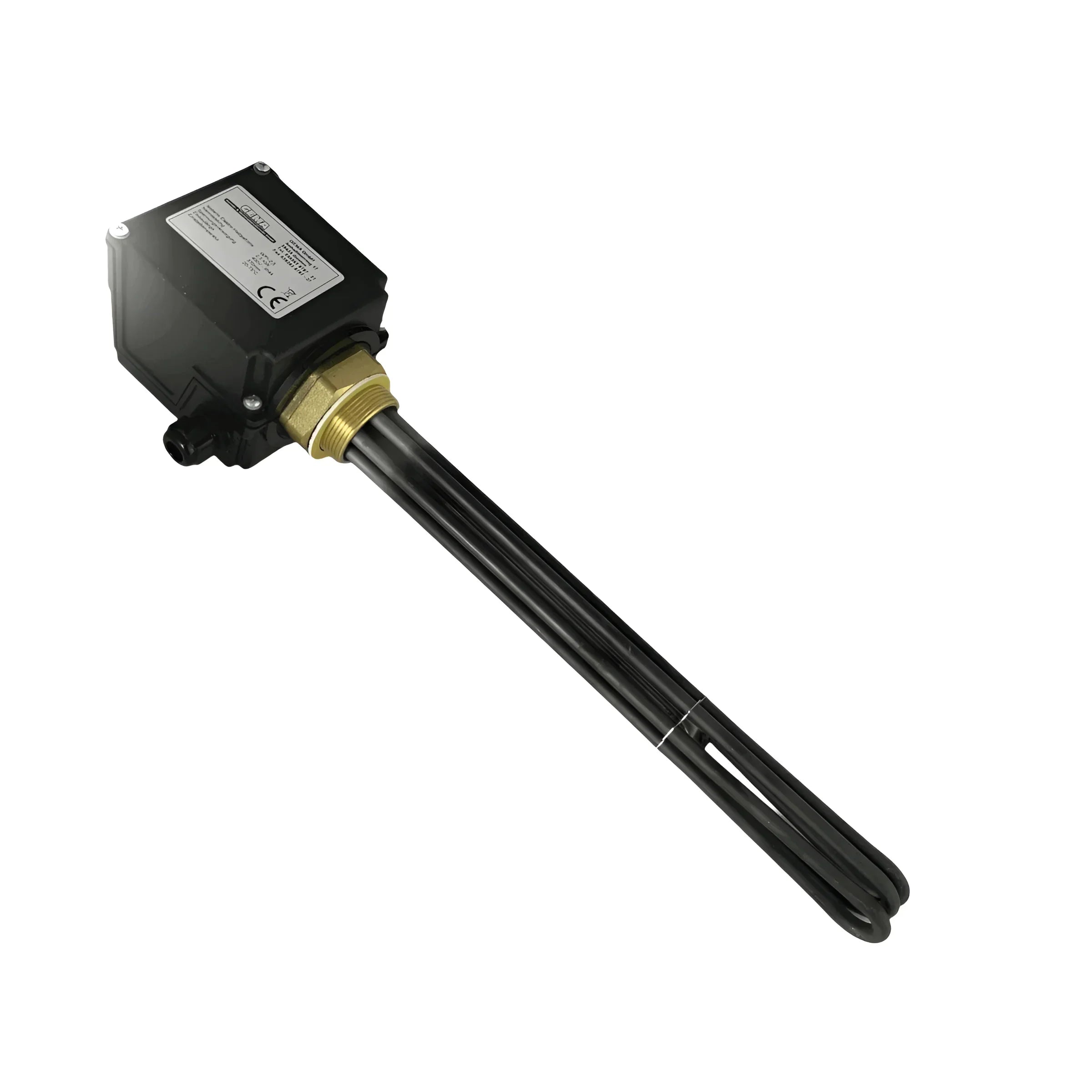

Elektroheizstab | Heating stick | Heating patronage I screwing radiator 3 KW AG 1 ½ "
Heating element heating cartridge 3 kW AG 1 ½“ emergency heating PV
Product overview
The Heating cartridge 3 kW offers a reliable electric heating solution for various storage tanks. It is specifically designed for use in buffer tanks, Drinking water storagen and solar storage tanks as well as enamelled containers.
Thanks to its high-quality design, the electric heating element can be used continuously and ensures efficient heat distribution in a wide variety of applications.
Areas of application
The Screw-in heaters With a 1 1/2" male thread connection, it is ideal for installation in various storage tanks. It ensures even heating, quickly bringing water and other liquids to the desired temperature.
Especially in emergency situations or as a supplement to other heating systems, this heating cartridge represents a reliable solution that meets the requirements of modern heating systems.
Depending on the storage capacity, various power ratings are available. The installation length and, if applicable, the table with suggested power ratings depending on the storage capacity serve as a guide.
Technology

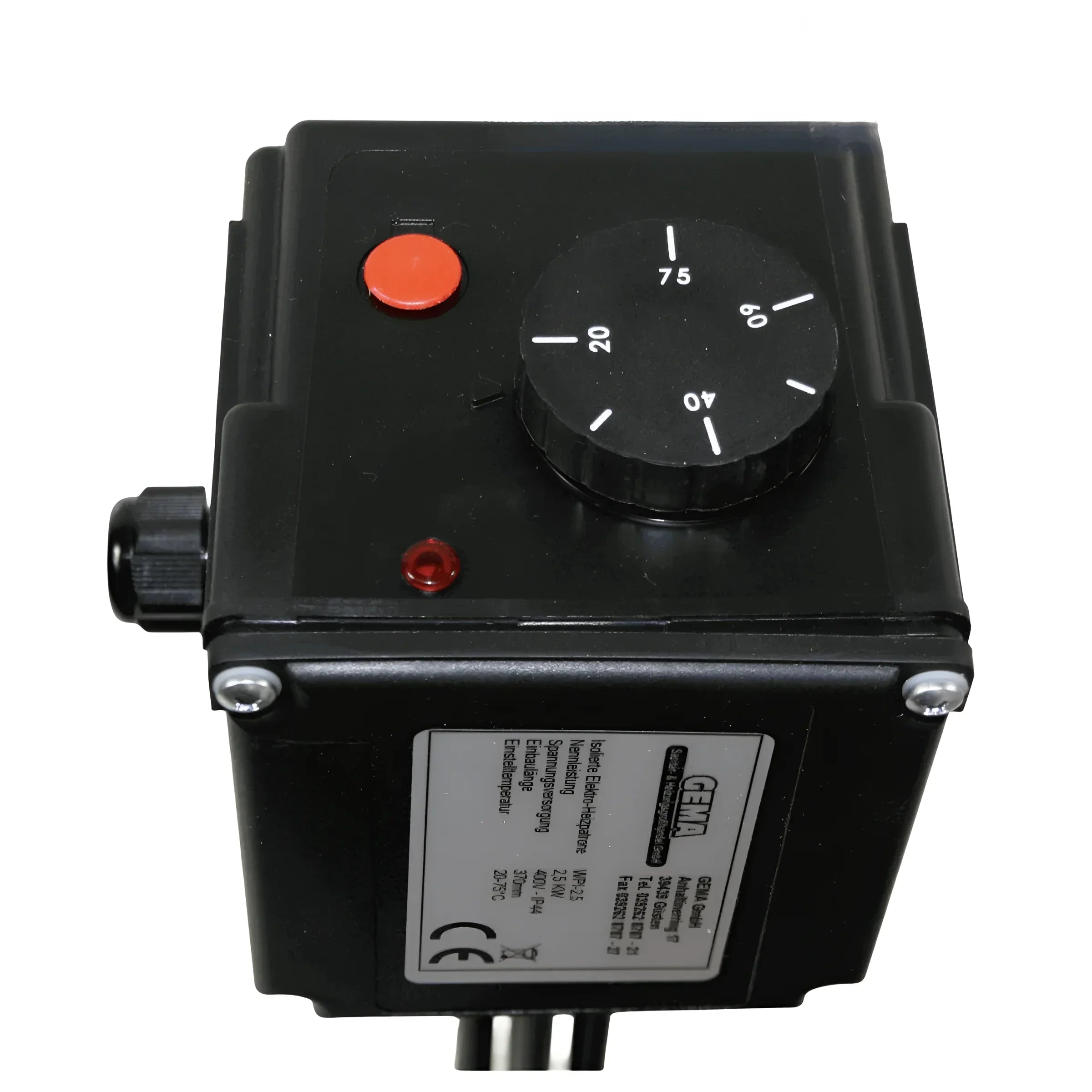

With a power output of 3000 W and an adjustable temperature range of 30 to 75 °C, the device offers precise control options. The integrated safety thermostat is set to 98 °C to prevent overheating.
The maximum installation length is 390 mm, and the unheated zone measures approximately 120 mm from the sealing surface. This design guarantees effective and safe operation.
Safety and materials
The Heating cartridge It features an insulating separation that prevents corrosion, significantly extending the service life of the device. The tube jacket material 2.4858 (Incoloy 825) ensures excellent corrosion resistance.
Other materials such as the brass screw head and the ABS plastic housing contribute to the product's stability and durability. The IP54 protection rating guarantees protection against dust and splash water, supporting safe operation.
Technical data
- Power: 3,000 watts

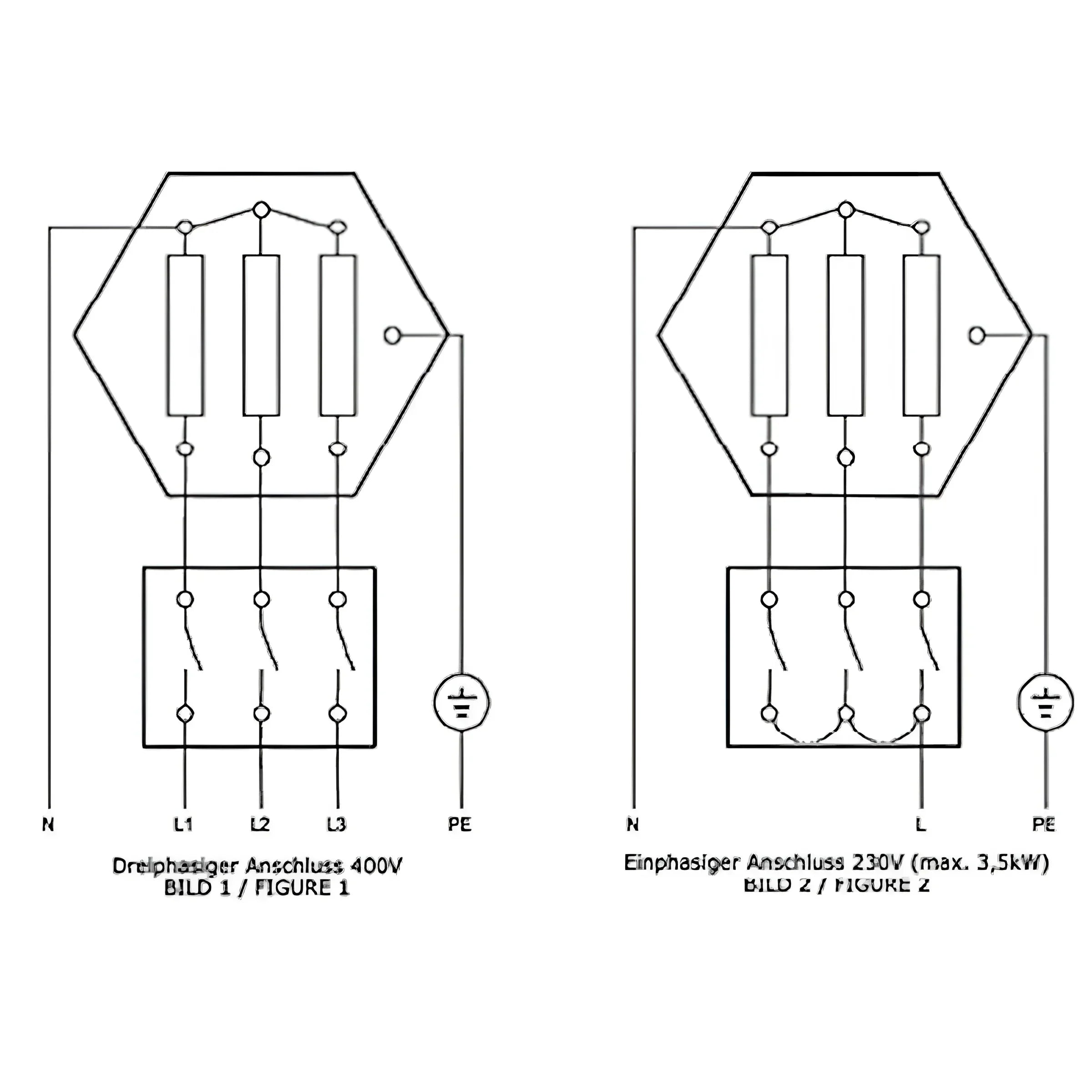

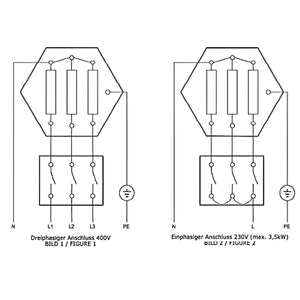

- Voltage: 230V/400V
- Application: enamelled containers
- unheated length: 120 mm
- Installation length: 390 mm
- Protection class: IP54
- max. operating pressure: 10 bar
- Temperature control: 30 - 75 °C
- Safety temperature limiter: 98 °C
- Connection: 1 1/2" AG
Scope of delivery
- 1 x heating element 3 kW
- 1 x flat gasket
- Assembly & Operating instructions
